CESS-215K-A
Description

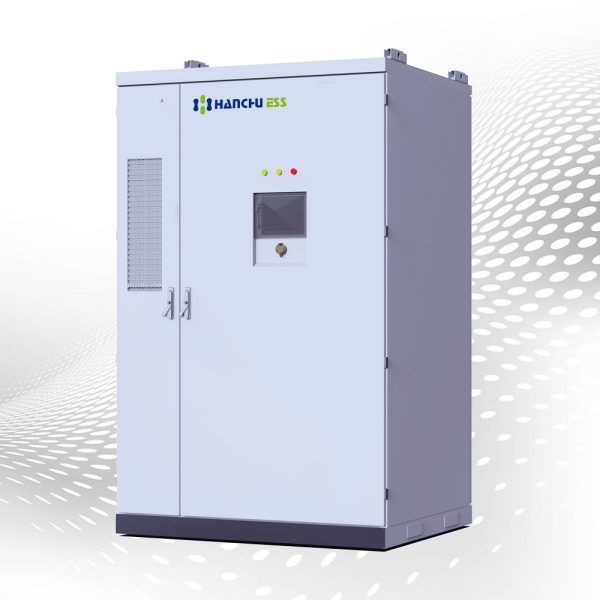

CESS‑215K‑A — Air‑Cooling Outdoor Cabinet ESS
A high-performance, all-in-one energy storage system designed for outdoor commercial and industrial applications. Built for reliability and integration, it combines energy storage, power conversion, thermal management, and advanced safety systems in a resilient, IP-rated housing.
🔧 Key Features & Benefits
-
Modular & Scalable Design
Compact, integrated AC/DC layout with a small footprint and seamless parallel configuration – ideal for expanding installations or phased rollouts. -
Smart Management & Connectivity
Onboard Battery Management System (BMS) plus cloud-based EMS enable real-time monitoring, remote diagnostics, OTA updates, and historical data logging. -
All-in-One Enclosure
Cabinet combines LFP battery packs, PCS, power distribution, air-conditioning, fire suppression system, EMS, and supervision controls in a single robust unit. -
Robust Safety & Thermal Control
Utilizes LiFePO₄ chemistry and multi-level protective design. IP54 rating safeguards against dust, water spray, and environmental factors. Internal air conditioning and insulation ensure thermal stability while dual fire extinguishing systems (fully fluorinated ketone + water) provide fire safety.
⚙️ Technical Specifications
| Parameter | CESS‑215K‑A |
|---|---|
| Battery Capacity | 215.04 kWh (LFP 3.2 V / 280 Ah cells, 1P240S) |
| Nominal Voltage | 768 Vdc (672–864 V range) |
| AC Output | 100 kW rated (110 kW max), 400 V 3‑phase, 50/60 Hz |
| Power Factor | −1 to +1 |
| Grid Integration | Transformer‑isolated, seamless grid/off‑grid switching |
| Dimensions & Weight | 1800 × 1200 × 2300 mm; ≈2,500 kg |
| Operating Conditions | −25 °C to +60 °C (derated above 45 °C); 0–95 % RH (non‑condensing) |
| IP Protection | IP54 enclosure |
| Cooling Method | Air-conditioning with optimized ventilation |
| Communication Interfaces | Wi‑Fi, RS‑485, Ethernet |
| Safety Compliance | IEC 62619, CE, UN38.3, MSDS |
🏭 Ideal Applications
-
Renewable integration: PV + storage microgrids
-
Peak shaving and time-of-use arbitrage for industrial clients
-
Backup power for critical infrastructure
-
Remote and off‑grid power systems requiring seamless switching and monitoring
✅ Why Choose the CESS‑215K‑A?
-
Efficient – High-capacity storage at 215 kWh with a 100 kW power plant in a compact footprint
-
Safe & Durable – LFP battery chemistry, reinforced build, multi-level protection, and comprehensive fire suppression
-
Smart & Connected – Full remote monitoring/control via integrated EMS
-
Environmentally Tested – IP54 rating and wide operating temperature range make it suitable for harsh climates
-
Expandable – Modular design supports parallel units for up to multi-MW systems
Product Sheet
Additional Information
| Weight | 2500 kg |
|---|---|
| Dimensions | 125 × 135 × 234.6 cm |
HanChu ESS brand
